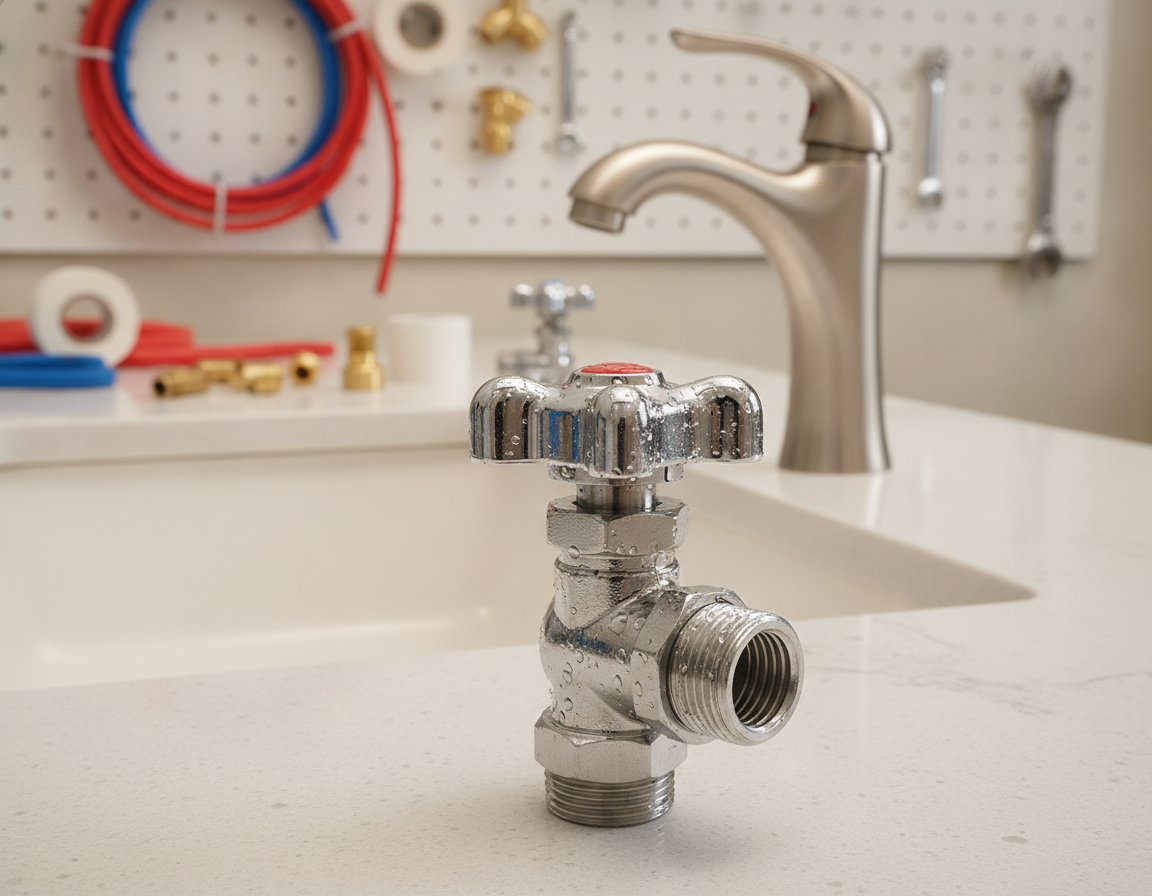

An angle stop is a space-saving, L-shaped shutoff valve where a water line feeds a fixture. You will find these valves under sinks, behind toilets, and at many appliance connections. A functioning Plumbing Angle Stop lets you isolate one fixture without shutting off the main supply. This makes repairs and replacements faster and less disruptive.
Angle Valve For Sink
Most home angle stops are 3–6 inches tall and turn water 90 degrees toward the fixture. Modern installations favor quarter-turn ball-style Angle Stop Valve designs. These are quicker to operate and tend to last longer. When an angle stop becomes leaky, replacement can limit water-damage risk and make future service easier.
Main Takeaways
- A Plumbing Angle Stop allows a single fixture to be isolated while the rest of the home stays supplied.
- Angle Stops Plumbing are commonly installed under sinks and behind toilets for easy access.
- An Angle Stop Valve typically measures 3–6 inches and turns water 90 degrees toward the fixture.
- Quarter-turn models are commonly preferred because they shut off faster.
- Any valve that leaks should be replaced before it causes larger water problems.
Understanding An Angle Stop And Why It Matters
The angle stop is a compact shutoff valve installed where a water line meets a fixture. It controls water to a single fixture so repairs, upgrades, or replacements can happen without closing the whole-house main. Homeowners, plumbers, and inspectors depend on these valves to keep maintenance contained.
Angle Stop Definition Explained
An angle stop is a right-angle valve installed on the supply line feeding a fixture. Angle Stop Valves come in several styles, including older multi-turn stem designs and newer quarter-turn ball designs. The Plumbing Angle Stop fits neatly under sinks and behind toilets while saving space.
Where Home Angle Stops Are Usually Installed
Plumbing Angle Stops are commonly found under kitchen and bathroom sinks. They sit at the back of cabinets where the supply line enters. Toilet angle stops are normally mounted on the wall behind or beside the toilet tank. Angle stops may also appear at appliance connections, including dishwashers, ice makers, washing machines, and some water-heater cold-supply lines.
Why Angle Stops Help Homeowners
One main benefit of an Angle Valve For Sink is isolation. With a working Plumbing Angle Stop, you can shut off a single sink, toilet, or appliance line while fixing a leak or replacing a fixture. This helps prevent minor leaks from becoming major water-damage events and keeps household disruption lower.
Convenience is another key benefit. Angle Stops Plumbing are compact, helping reduce repair time and inconvenience. Periodic exercising of the valve keeps it operable. Replacing old multi-turn stops with quarter-turn Angle Stop Valve models can make emergency shutoff faster.
Angle Stop Versus Angle Seat Valve
Residential angle stops are made for fixture-level potable water service. They are suited to sinks, toilets, and everyday household appliances. An industrial Angle Seat Valve is a different type of valve. It handles high-pressure, high-temperature, or corrosive media found in steam, chemical, and HVAC systems. Angle seat valves use pistons and durable metal seats for tough service, while an Angle Stop is a simpler fixture-level shutoff for residential plumbing.
Types Of Angle Stops And How To Choose One
Selecting the correct angle stop involves comparing materials, operating style, connection type, and extra features. This guide compares common options to help homeowners and plumbers choose a durable, code-compliant fixture shutoff.
Materials
Brass is widely used as the standard material for Angle Stops. It resists corrosion and can last 10–20 years, making it ideal for Quarter-Turn Angle Stops. Stainless steel bodies are best for humid basements, coastal areas, and outdoor hose bibs to prevent rust. Plastic-bodied stops cost less but are less durable and may degrade in hot-water loops. For potable water lines in the United States, select a Lead-Free Angle Stop that meets applicable federal and state requirements.
Valve Operation Styles
Quarter-turn valves use a ball or disc and open with a 90-degree turn. They offer fast shutoff and better resistance to mineral buildup, which makes them useful for frequent operation and emergencies. Multi-turn valves rely on a rising stem and need several turns to open or close fully. They provide finer flow control but are more likely to leak or stick in older homes.
Connection Types
Compression Angle Stop fittings join with a nut and ferrule and suit copper or CPVC stub-outs. They are popular in remodels because they can be installed without soldering or open flame. Sweat Angle Stop joints are soldered for a slim, permanent seal and work well in tight spaces where a torch is acceptable. FIP-threaded valves attach to male adapters and usually require PTFE tape or pipe-thread sealant. Push-Fit Angle Stop models, including SharkBite-style options, can slide onto copper, CPVC, or PEX without special tools. Push-fit designs are handy for DIY jobs and cramped spaces, while Compression Angle Stop fittings are common where future removal or rework may be needed.
Special Features
Some Angle Stop Valve designs include a built-in Water Hammer Arrestor Angle Stop. These use a piston or air chamber to absorb shock from quick-closing fixtures and reduce noisy banging. In humid or coastal locations, a Coastal Angle Stop with corrosion-resistant finishes, stainless internals, and anti-seize stems can improve service life. Lead-Free Angle Stop markings on the body confirm potable-water compliance. Choose a valve that matches the pipe material, connection type, and service conditions to reduce premature failure.
Plumbing Angle Stops
Plumbing angle stops control water flow to fixtures with a right-angle design. The choice of size and style affects both function and code compliance. Below, we cover common markings, placement, potable-water standards, and modern standardization trends.
Common Valve Sizes And How To Read Markings
In most homes, the inlet side is commonly 1/2 inch nominal, while the outlet to the fixture is often 3/8 inch compression. Valve markings often appear as 1/2 x 3/8, 1/2” MIP x 3/8” OD, or similar size combinations. Those markings show which side connects to the supply pipe and which side connects to the fixture hose. Some valves are marked 3/8 COMP to indicate a compression outlet. Before buying, confirm that the inlet matches your supply piping, whether it is 1/2 FIP, 1/2 MIP, 1/2 sweat, or another style.
Common Home Placement
Angle stops are commonly found under kitchen and bathroom sinks and behind toilets. They are also used for appliances such as water heaters, dishwashers, ice makers, and washing machines. Under-sink valves are commonly located at the rear of cabinets, while toilet stops are generally visible near the wall behind the tank.
Potable Water Code And Safety Notes
In the United States, valves used on drinking-water lines must comply with lead-free requirements for wetted surfaces. Choose a Lead-Free Angle Stop that has clear markings, documentation, or certification details. Contractors should follow local plumbing codes and provide the appropriate certifications, testing information, and warranty support.
Recommended Angle Stop Standards
Modern Angle Stops often use quarter-turn ball designs. The Quarter-Turn Angle Stop gives quick emergency shutoff and long life with brass construction. Many plumbers standardize on brass 1/2 x 3/8 angle stops for sinks and toilets because they simplify stocking, replacement, and maintenance. Models with arrestors and other potable-water protection features are increasingly common in new installations.
Practical Checklist For Selection
- Confirm Valve Markings for inlet type and outlet size before purchase.
- Match the Angle Valve For Sink or toilet to supply hose fittings and tank threads.
- Specify a Lead-Free Angle Stop when the line serves potable water.
- For many homes, standardizing on Quarter-Turn Angle Stop 1/2 x 3/8 valves can simplify maintenance and improve reliability.
Installing And Replacing Angle Stops With Tools Steps And Best Practices
Before working on a plumbing angle stop, decide whether the main water supply needs to be shut off. The main usually needs to be closed only when the existing stop is unable to close fully. For most replacements, you can isolate the line using the valve under the sink. Always open a downstream faucet to relieve pressure and keep towels and a bucket ready.
Before starting, gather all needed tools and supplies. You will need an adjustable wrench, backup wrench, tube cutter, and deburring tool. Emery cloth for copper, PTFE tape for threaded joints, a marker, and a flashlight are also useful. For push-fit work, use the manufacturer’s push-fit angle stop and a PEX stiffener where needed; for compression jobs, keep spare ferrules and nuts available. Penetrating oil can help with stuck fittings, while a heat shield is useful around sweat connections.
Tool Checklist:
- Two-wrench setup for secure tightening
- Tube cutter and deburring tool
- Thread tape and insertion-depth marker
- Push-fit angle stop and PEX stiffener
- Extra ferrules, nuts, oil, towels, and cleanup supplies
Each connection type requires its own installation method. For a compression connection, slide the nut and ferrule onto the pipe and seat the valve squarely against the pipe shoulder. Hand-tighten the nut and finish with a 1/4–1/2 turn using a wrench. When tightening the outlet nut, use a backup wrench to prevent twisting the stub-out.
For push-fit installation, cut the pipe square and deburr it. Mark the insertion depth and push the valve straight on to the depth mark. Tug lightly to confirm the fitting locked. Push-fit angle stop fittings work on copper, CPVC, and PEX; use a stiffener for PEX where required.
Sweat angle stop joints require careful handling. Remove or protect nearby seals and internals, clean and flux the pipe and valve cup, heat the joint evenly, and solder. Once the joint cools, wipe away flux residue and inspect the solder bead. A heat shield or removal of heat-sensitive parts helps prevent damage during soldering.
For a FIP angle stop or other threaded connection, apply three to four wraps of PTFE tape to the male threads and start the valve by hand to prevent cross-threading. Tighten until aligned and sealed, then connect the supply line and test slowly.
Test the work by turning water on slowly and watching the joints. Open the angle stop and fixture in stages rather than all at once. Use a dry towel or tissue to reveal small weeps around fittings. Exercise the valve and recheck after pressure stabilizes to catch slow leaks.
Be aware of common mistakes that can lead to failures. Over-tightened compression nuts may deform ferrules and create leaks. Do not reuse damaged ferrules; when necessary, cut back the pipe and install a new ferrule. Avoid sweating valves without protecting seals or removing internal parts. Avoid twisting push-fit valves during insertion and always follow the manufacturer’s insertion-depth marks.
Typical problems include frozen or leaking stops that require main shutoff, incorrectly applied PTFE tape on threaded joints, and outlet nuts tightened without a backup wrench. Keeping spare parts available and following proper tightening guidance helps reduce repeat repairs.
Angle Stop Problems And Quick Repairs
Homeowners often encounter small leaks and frozen handles with angle stops. A quick assessment shows whether a simple fix is enough or a full replacement is needed for long-term reliability.
Leaking At The Stem Or Handle
Stem seepage in older multi-turn valves often comes from a loose packing nut. A careful 1/8-turn tightening with an adjustable wrench may stop the leak. If the leak continues, the internal washer or O-ring may be worn and replacement may be required.
Stuck Valves
Mineral Buildup, corrosion, and rust commonly cause stuck angle stops. Applying a penetrating oil such as WD-40 and allowing it to sit for about ten minutes can sometimes loosen the valve. Gently rocking the handle back and forth may free the valve. If the valve stays frozen or the handle feels brittle, replacement is safer than forcing it and risking a flood.
Compression Joint Weeps
A continuing compression-joint leak often points to a crooked ferrule, damaged pipe end, or poor seating. To fix it, loosen the nut, reseat the ferrule, and clean the pipe with emery cloth. If the ferrule is worn, cut back the pipe, install a new ferrule, and tighten carefully to prevent more leaks.
When To Upgrade
If a home has repeated leaks, frozen handles, visible corrosion, or valves older than about ten years, modern angle stops are worth considering. A Quarter-Turn Upgrade to a ball-type stop improves shutoff speed, resists Mineral Buildup, and increases emergency reliability.
Quick Checklist
- For stem drips, tighten the packing nut slightly and recheck.
- Use Penetrating Oil and gentle motion for stuck valves.
- For compression leaks, reseat the ferrule or cut back the pipe and install a new ferrule.
- Upgrade to quarter-turn stops when valves freeze or leak repeatedly.
Turning angle stops occasionally and inspecting for corrosion can reveal problems before they become emergencies. Fixing leaks, stuck valves, and weeping joints promptly helps prevent bigger repairs and supports Angle Stop Reliability.
Final Thoughts
The Plumbing Angle Stops Guide highlights the importance of these small but critical components. They allow homeowners to isolate specific fixtures without affecting the entire system. Selecting the proper material, valve operation, and connection style makes future repair work simpler. It also reduces the risk of water damage during upgrades.
For best performance, the industry often recommends lead-free, quarter-turn brass 1/2 x 3/8 stops. Integrated arrestors are also useful where water hammer is a concern. Homeowners should periodically test valves and replace Plumbing Angle Stops that leak, stick, or corrode. Parts may cost $6 to $60, while professional installation can range from $75 to $200 depending on location and complexity.
When installation feels uncertain, hiring a licensed plumber is the safer option. A plumber can ensure code compliance and provide warranty-backed work. That approach helps protect fixtures, reduce risk, and make future maintenance easier. It also supports current Angle Stops Plumbing best practices for today’s residential systems.
